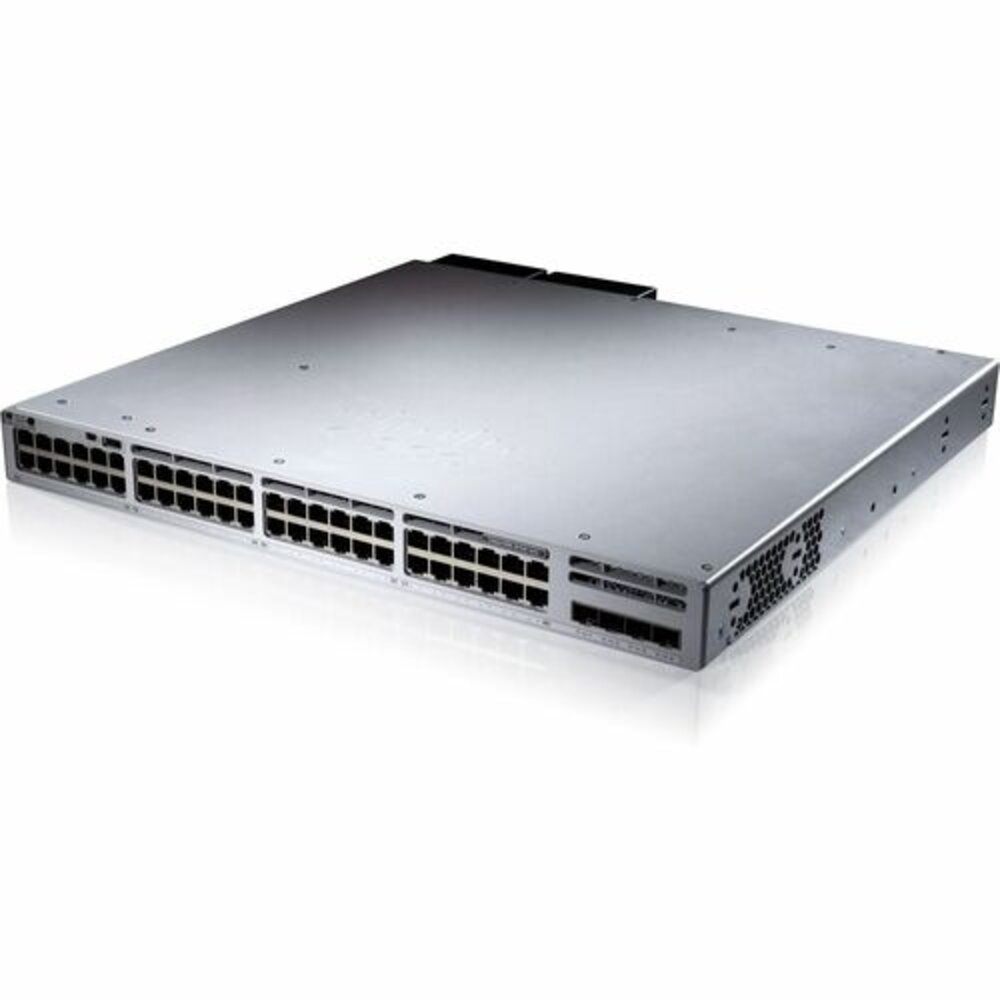

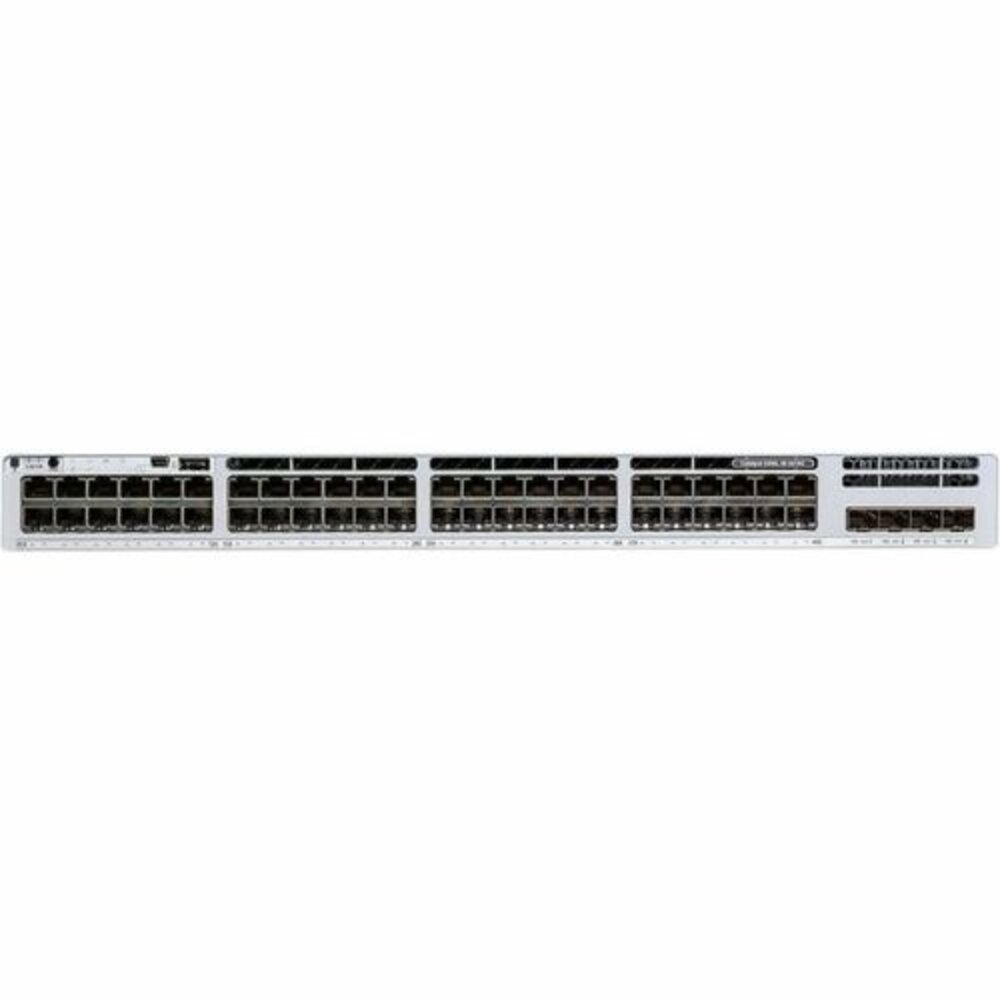

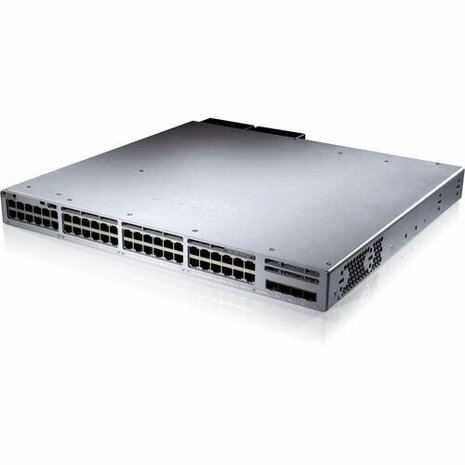

Cisco Catalyst C9300-48UXM-M


Informatie
De Cisco Catalyst C9300-48UXM-M behoort tot de Catalyst 9300-serie en is ontworpen voor enterprise access netwerken waar hoge prestaties, flexibiliteit en schaalbaarheid centraal staan. Deze switch beschikt over 48 multigigabit poorten, geschikt voor moderne WiFi 6 en WiFi 6E access points en high-performance endpoints.
Met ondersteuning voor Layer 3 routing, Cisco StackWise-technologie en modulaire uplinks is de C9300-48UXM-M geschikt voor organisaties die hun netwerk toekomstbestendig willen inrichten. De switch draait op Cisco IOS XE en ondersteunt geavanceerde beveiligingsfuncties zoals Secure Boot, Trust Anchor en uitgebreide netwerksegmentatie.
Door de combinatie van multigigabit performance, enterprise security en schaalbaarheid is dit model ideaal voor middelgrote tot grote bedrijfsomgevingen.
Hoogtepunten van het product
48x multigigabit Ethernet poorten
Ondersteuning voor WiFi 6 en WiFi 6E access points
Layer 3 routing
StackWise ondersteuning
Modulaire uplink opties
Enterprise beveiligingsfuncties
IOS XE besturingssysteem
Link datasheet
Productspecificaties
- Artikelnummer
- C9300-48UXM-M
- SKU
- 6077691
- Switch-laag
- Layer 2 en Layer 3
- Quality of Service (QoS)
- Ja
- Web-gebaseerd management
- Ja, met licentie
- Switch type
- Managed Switch
- Access Control List (ACL)
- Ja
- IGMP snooping
- Ja
- BPDU filtering / bescherming
- Ja
- Root-bescherming
- Ja
- DHCP-functies
- DHCP snooping, DHCP relay
- Switchingcapaciteit
- Tot 480 Gbps
- MAC-adrestabel
- 32.000 entries
- Jumbo Frames ondersteuning
- Ja
- Jumbo frames
- Tot 9.216 bytes
- Kleur van het product
- Grijs
- Rack-montage
- Ja
- Ophangsysteem voor aan de muur
- Nee
- Temperatuur, in bedrijf
- 0°C tot 45°C
- Relatieve luchtvochtigheid, in bedrijf
- 5% tot 95%
- Power over Ethernet (PoE)
- Ja
- Stroom
- Modulaire AC-voeding
- AC invoer voltage
- 100–240V AC
- AC invoer frequentie
- 50/60 Hz
- DC voltage input
- Niet standaard
- Multicast-ondersteuning
- Ja
- Broadcast stormbeheer
- Ja
- Spanning tree protocol
- RSTP, MSTP, PVST+
- Auto MDI/MDI-X
- Ja
- Aantal VLANs
- 4094
- VLAN=ondersteuning
- Ja (802.1Q)
- 10G support
- Ja
- Console port
- Ja (RJ-45 + USB console)
- Aantal geïnstalleerde SFP modules
- 0
- Type basis-switching RJ-45 Ethernet-poorten
- Multigigabit Ethernet (1G / 2.5G / 5G / 10G)
- Aantal basis-switching RJ-45 Ethernet-poorten
- 48
- Netstekker
- C14
- Wissel protocols
- Layer 2 switching, Layer 3 routing
- Beheerprotocollen
- SNMP v1/v2c/v3, SSH, Telnet, HTTPS, REST API
- Hoogte
- 44 mm
- Diepte
- 445 mm
- Breedte
- 445 mm
- Gewicht
- Ongeveer 8,5 kg
