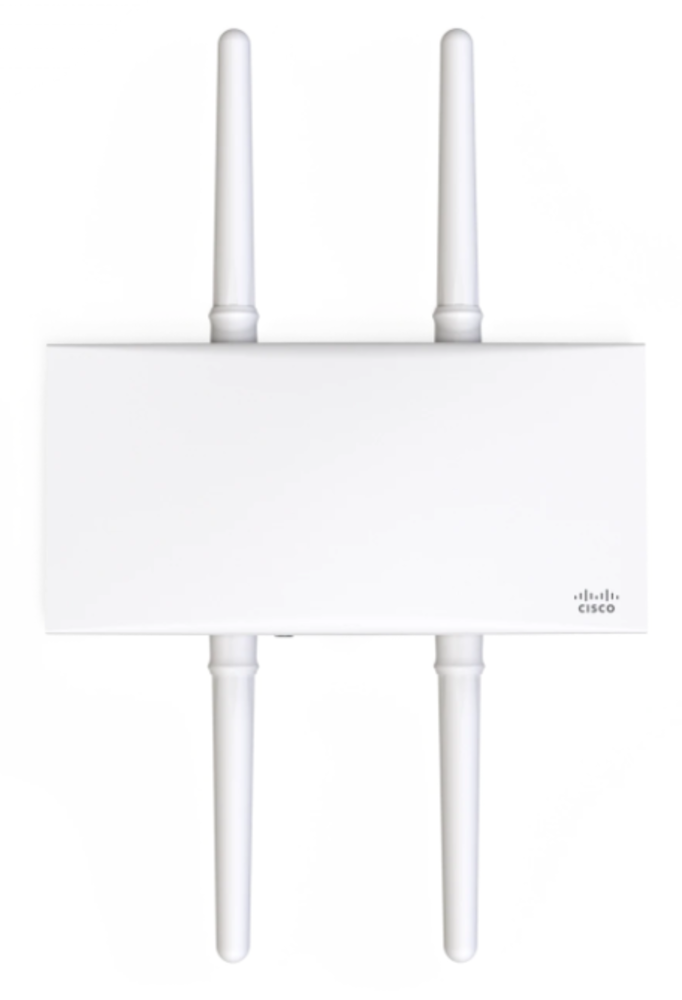

Cisco Meraki MR76
Informatie
De Meraki MR-serie is 's werelds eerste hoogwaardige lijn van door de cloud beheerde WLAN- toegangspunten. Ontworpen voor uitdagende bedrijfsomgevingen waarbij de MR-toegangspunten advanced Wi-Fi 6-technologieën gebruiken, waaronder MU-MIMO, OFDMA, bundelvorming
en kanaalbinding om de doorvoer, betrouwbaar te leveren.
Hoogtepunten van het product
- Geschikt voor buiten
- IP67
- 4 radio's: 2,4 GHz, 5 GHz, dual-band WIDS / WIPS en Bluetooth BLE
- 2-stream UL / DL MU-MIMO 802.11ax tot 1,7 Gbps dubbele geaggregeerde framesnelheid
- Gigabit Ethernet-poort, 802.3af PoE-compatibel
- 802.1X en native Active Directory-integratie
- Stateful Layer 3-7 firewall
Specificaties
- Radios
- 2.4 GHz 802.11b/g/n/ax client access radio
- 5 GHz 802.11a/n/ac/ax client access radio
- 2.4 GHz and 5 GHz dual-band WIDS/WIPS, spectrum analysis, and location analytics radio
- 2.4 GHz Bluetooth Low Energy (BLE) radio with Beacon and BLE scanning support
- Max data rate 1.7 Gbit/s
- Operating Bands (country-specific restrictions apply)
- 2.412-2.484 GHz
- 5.150-5.250 GHz (UNII-1)
- 5.250-5.350 GHZ (UNII-2)
- 5.470-5.600 GHz, 5.650-5.725 GHz (UNII-2e)
- 5.725-5.825 GHz (UNII-3)
- 802.11ax, 802.11ac Wave 2, and 802.11n Capabilities
- UL/DL OFDMA, TWT support, BSS coloring
- 2×2 multiple input, multiple output (MIMO) with 2 spatial streams
- UL/DL SU-MIMO and MU-MIMO Support
- Maximal ratio combining (MRC) & Beamforming
- 20 and 40 MHz channels (802.11n); 20, 40, and 80 MHz channels (802.11ac Wave 2); 20, 40 and 80 MHz channels (802.11ax)
- Up to 1024 QAM on both 2.4 GHz and 5 GHz bands
- Packet aggregation
- Power
- Power over Ethernet: 37 - 57 V (802.3af compatible)
- Power consumption: 15 W max
- Power over Ethernet injector sold separately
- Mounting
- Mounts to walls and horizontal, vertical, and angled poles
- Mounting hardware included
- Physical Security
- Security screw included
- Anti-tamper cable bay
- Concealed mount plate
- Environment
- Operating temperature: -40°F to 131°F (-40°C to 55°C)
- IP67 environmental rating (sealed against water and dust)
- Physical Dimensions
- 11.81” x 6.02” x 2.16” (30.0 cm X 15.3 cm X 5.5 cm), not including cable gland, mounts and antennas
- Weight: 47.27 oz (1.34 kg)
- Interfaces
- 1x 10/100/1000 BASE-T Ethernet (RJ45)
- Security
- Integrated Layer 7 firewall with mobile device policy management
- Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal
- Flexible guest access with device isolation
- WEP**, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X, WPA3 - Personal**, WPA3 - Enterprise**, WPA3 - Enhanced Open (OWE)**
- EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM
- PCI compliance reporting
- TKIP and AES encryption
- Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration
- Cisco ISE integration for Guest access and BYOD Posturing
- Quality of Service
- Advanced Power Save (U-APSD)
- WMM Access Categories with DSCP and 802.1p support
- Layer 7 application traffic identification and shaping
- Mobility
- PMK, OKC, & 802.11r for fast Layer 2 roaming
- 802.11r and 802.11k
- Distributed or centralized layer 3 roaming
- LED Indicators
- 4 signal strength
- 1 Ethernet connectivity
- 1 power/booting/firmware upgrade status
- Regulatory
- RoHS
- Warranty
- 1 year hardware warranty with advanced replacement included
