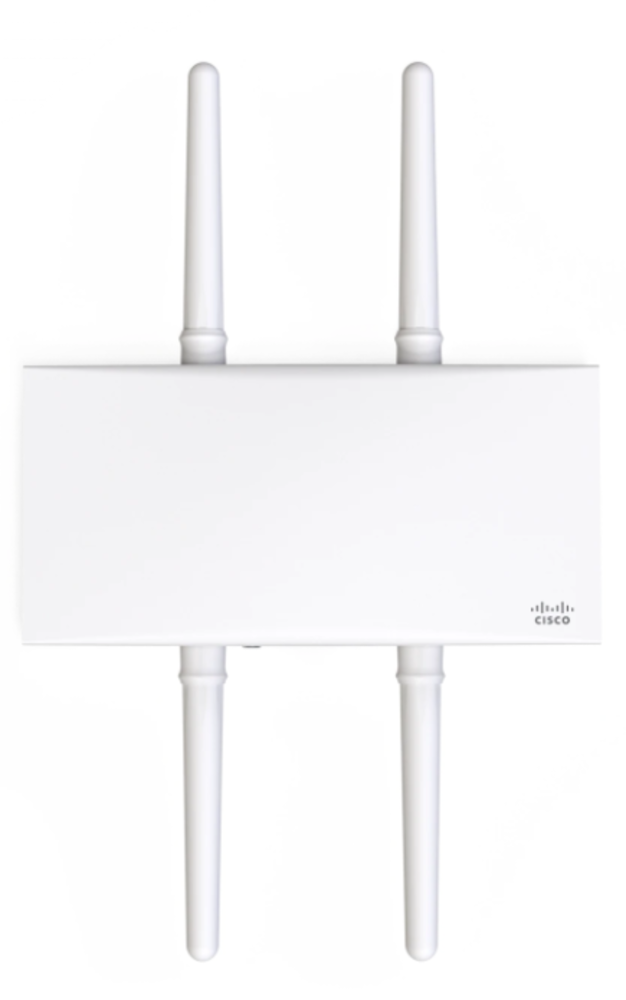

Cisco Meraki MR86 Wi-Fi 6 Access Point
Informatie
Cisco Meraki MR86. Ethernet LAN, data-overdrachtsnelheden: 100,1000,2500 Mbit/s, Netwerkstandaard: IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n, MIMO-type: Multi User MIMO. Ondersteunde beveiligingsalgoritmen: WPA,WPA2-Enterprise,WPA2-PSK. Plaatsing: Paal, Muur, Kleur van het product: Wit, Internationale veiligheidscode (IP): IP67. Soort antenne: Intern. Breedte: 300 mm, Diepte: 153 mm, Hoogte: 55 mm
Cisco Meraki MR86, 100,1000,2500 Mbit/s, IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n, Multi User MIMO, Tagged VLAN, WPA,WPA2-Enterprise,WPA2-PSK, Paal, Muur
Hoogtepunten van het product
- Geschikt voor buiten
- IP67
- 4 radio's: 2,4 en 5 GHz, dual-band WIDS / WIPS en Bluetooth Low Energy (BLE)
- 4-stream UL / DL MU-MIMO 802.11ax, tot 3,55 Gbps dual-aggregate doorvoer
- 1 x Multigigabit Ethernet-poort, PoE: 802.3at
- 802.1X en native Active Directory-integratie
- Stateful Layer 3-7 firewall
Specificaties
| Radios |
| 2.4 GHz 802.11b/g/n/ax client access radio |
| 5 GHz 802.11a/n/ac/ax client access radio |
| 2.4 GHz & 5 GHz dual-band WIDS/WIPS, spectrum analysis, & location analytics radio |
| 2.4 GHz Bluetooth Low Energy (BLE) radio with Beacon and scanning support |
| Concurrent operations of all four radios |
| Supported frequency bands (country-specific restrictions apply): |
|
|
|
|
|
| 802.11ax, 802.11ac Wave 2, and 802.11n Capabilities |
| UL/DL OFDMA, TWT support, BSS coloring |
| 4 x 4 multiple input, multiple output (MIMO) with four spatial streams |
| UL/DL SU-MIMO and MU-MIMO support |
| Maximal ratio combining (MRC) & beamforming |
| 20 and 40 MHz channels (802.11n); 20, 40, and 80 MHz channels (802.11ac Wave 2); 20, 40 and 80 MHz channels (802.11ax) |
| Up to 1024 QAM on both 2.4 GHz and 5 GHz bands |
| Packet aggregation |
| Power |
| Power over Ethernet: 42.5 - 57 V (802.3at compatible) |
| Power consumption: 18 W max |
| Power over Ethernet injector sold separately |
| Mounting |
| Mounts to walls and vertical poles. |
| Mounting hardware included |
| Physical Security |
| Security screw included |
| Anti-tamper cable bay |
| Concealed mount plate |
| Environment |
| Operating temperature: -40 °F to 131 °F (-40 °C to 55 °C) |
| Humidity: 5 to 95% non-condensing |
| IP67 environmental rating |
| Physical Dimensions |
| 11.81” x 6.02” x 2.16” (30.0 cm X 15.3 cm X 5.5 cm), not including cable gland, mounts or antennas |
| Weight: 52.91 oz (1.5 kg) |
| Interfaces |
| 1x 100/1000/2.5G BASE-T Ethernet (RJ45) |
| Security |
| Integrated Layer 7 firewall with mobile device policy management |
| Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal |
| Flexible guest access with device isolation |
| VLAN tagging (802.1q) and tunneling with IPsec VPN |
| PCI compliance reporting |
| WEP**, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X, WPA3 - Personal**, WPA3 - Enterprise**, WPA3 - Enhanced Open (OWE)** |
| EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM |
| TKIP and AES encryption |
| Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration |
| Cisco ISE integration for Guest access and BYOD Posturing |
| Quality of Service |
| Advanced Power Save (U-APSD) |
| WMM Access Categories with DSCP and 802.1p support |
| Layer 7 application traffic identification and shaping |
| Mobility |
| PMK, OKC, & 802.11r for fast Layer 2 roaming |
| Distributed or centralized layer 3 roaming |
| Analytics |
| Embedded location analytics reporting and device tracking |
| Global L7 traffic analytics reporting per network, per device, & per application |
| Warranty |
| 1 year hardware warranty with advanced replacement included |
