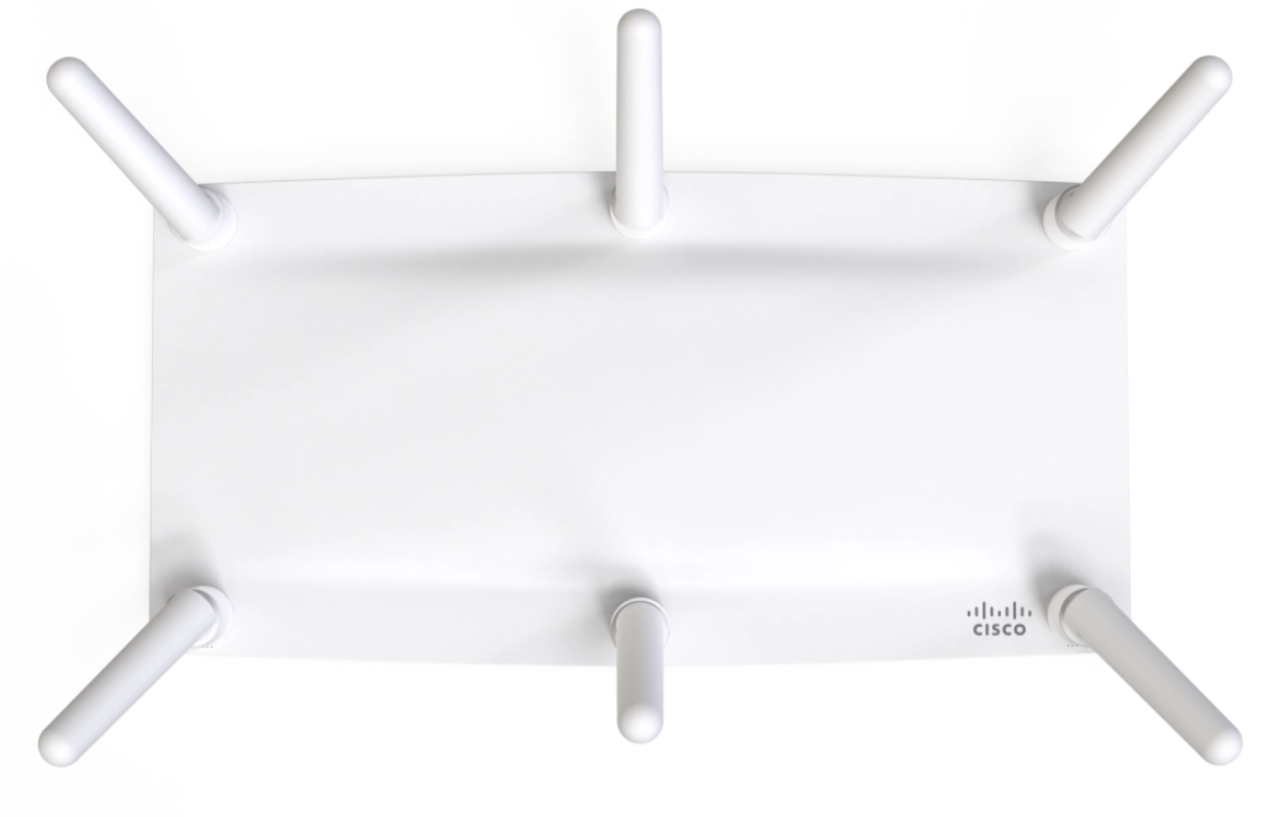

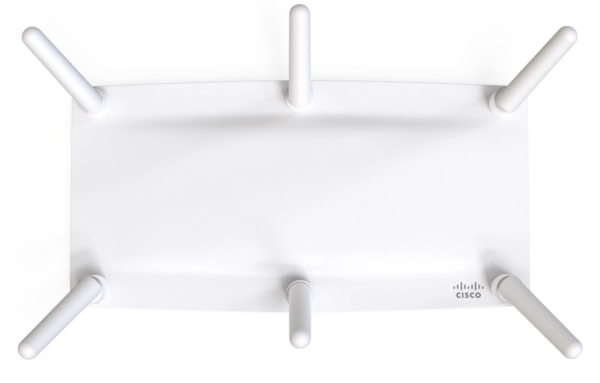

Cisco Meraki MR46E Wi-Fi 6 Access Point
Informatie
Cisco Meraki MR46E. Ethernet LAN, data-overdrachtsnelheden: 10,100,1000,2500 Mbit/s, Netwerkstandaard: IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n, Bekabelingstechnologie: 10/100/1000Base-T(X). Ondersteunde beveiligingsalgoritmen: EAP-TLS,EAP-TTLS,WPA,WPA2-Enterprise,WPA2-PSK. Ingangsspanning: 12 V, Vermogensverbruik (max): 18 W. Plaatsing: Tafel, Muur, Kleur van het product: Wit. Soort antenne: Extern
Cisco Meraki MR46E, 10,100,1000,2500 Mbit/s, IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n, 10/100/1000Base-T(X), Multi User MIMO, 1024-QAM, EAP-TLS,EAP-TTLS,WPA,WPA2-Enterprise,WPA2-PSK
Hoogtepunten van het product
- 4×4:4 MU-MIMO and OFDMA with beam forming
- 3.5 Gbit/sec totale framesnelheid
- 24x7 real-time WIDS / WIPS en spectrumanalyse via speciale derde radio
- Geïntegreerde Bluetooth Low Energy Beacon
- Geïntegreerde scanradio
- Verbeterd zendvermogen en ontvangstgevoeligheid
- Geïntegreerde bedrijfsbeveiliging en gasttoegang
- Applicatiebewuste traffic shaping
- Geoptimaliseerd voor spraak en video
- Zelfconfigurerende, plug-and-play implementatie
- Slank ontwerp past in kantooromgevingen
- Fulltime Wi-Fi-locatie volgen via speciale 3e radio
Specificaties
| Radios |
| 2.4 GHz 802.11b/g/n/ax client access radio |
| 5 GHz 802.11a/n/ac/ax client access radio |
| 2.4 GHz and 5 GHz dual-band WIDS/WIPS, spectrum analysis, and location analytics radio |
| 2.4 GHz Bluetooth Low Energy (BLE) radio with Beacon and BLE scanning support |
| Concurrent operation of all three radios |
| Supported frequency bands (country-specific restrictions apply): |
|
|
|
|
|
| Antenna |
| List of compatible antennas: MA-ANT-3-A6/B6/C6/D6/E6/F6 |
| Individual antenna elements for each radio |
| 802.11ax, 802.11ac Wave 2 & 802.11n Capabilities |
| UL/DL OFDMA, TWT support, BSS coloring |
| 4×4 multiple input, multiple output (MIMO) with four spatial streams |
| UL/DL SU-MIMO and MU-MIMO support |
| Maximal ratio combining (MRC) and beamforming |
| 20 and 40 MHz channels (802.11n); 20, 40, and 80 MHz channels (802.11ac Wave 2); 20, 40 and 80 MHz channels (802.11ax) |
| Up to 1024 QAM on both 2.4 GHz and 5 GHz bands |
| Packet aggregation |
| Power |
| Power over Ethernet: 42.5 - 57 V (802.3at compatible) |
| Alternative 12 V DC input |
| Power consumption: 30W max (802.3at) |
| Power over Ethernet injector and DC adapter sold separately |
| Interfaces |
| 1× 10/100/1000/2.5G BASE-T Ethernet (RJ45) |
| 1× DC power connector (5.5 mm × 2.5 mm, center positive) |
| Mounting |
| All standard mounting hardware included |
| Desktop, ceiling and wall mount capable |
| Ceiling tile rail (9/16, 15/16, or 1 1/2" flush or recessed rails), assorted cable junction boxes |
| Bubble level on mounting cradle for accurate horizontal wall mounting |
| Physical Security |
| Two security screw options included |
| Kensington lock hard point |
| Concealed mount plate with anti-tamper cable bay |
| Environment |
| Operating temperature: 32 °F to 122 °F (0 °C to 50 °C) |
| Humidity: 5 to 95% non-condensing |
| Physical Dimensions |
| 9.84” x 4.72” x 1.42” (30.72 cm x 15.62 cm x 3.49 cm), not including desk mount feet or mount plate |
| Weight: 29.98 oz (0.85 kg) |
| Security |
| Integrated Layer 7 firewall with mobile device policy management |
| Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal |
| Flexible guest access with device isolation |
| VLAN tagging (802.1Q) and tunneling with IPSec VPN |
| PCI compliance reporting |
| WEP**, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X, WPA3 - Personal**, WPA3 - Enterprise**, WPA3 - Enhanced Open (OWE)** |
| EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM |
| TKIP and AES encryption |
| Enterprise Mobility Management (EMM) and Mobile Device Management (MDM) integration |
| Cisco ISE integration for guest access and BYOD posturing |
| Quality of Service |
| Advanced Power Save (U-APSD) |
| WMM Access Categories with DSCP and 802.1p support |
| Layer 7 application traffic identification and shaping |
| Mobility |
| PMK, OKC, and 802.11r for fast Layer 2 roaming |
| Distributed or centralized Layer 3 roaming |
| Analytics |
| Embedded location analytics reporting and device tracking |
| Global L7 traffic analytics reporting per network, per device, and per application |
| LED Indicators |
| 1 power/booting/firmware upgrade status |
| Regulatory |
| RoHS |
| For additional country-specific regulatory information, please contact Meraki Sales |
| Warranty |
| Lifetime hardware warranty with advanced replacement included |
| Compliance |
| EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC |
